The latest 23cm and 13cm EME activity from G4CCH
28th March 2010
I am working on equipment for 3400 MHz (9cm) and hope to be making my first EME contacts soon.
Quick Update
| StartDate | StartTime | FREQ | Mode | Callsign | RSTOut | RSTIn | QSO_SQUARE | INITIAL | INIT_A | INIT_D | FIRST | COMMENTS |
| 13/03/2010 | 09:27 | 1296 | CW | F5KUG | 559 | 539 | JN03PO | Yes | 309 | |||
| 13/03/2010 | 11:32 | 1296 | CW | K1RQG | 599 | 599 | ||||||
| 20/03/2010 | 11:39 | 1296 | CW | PA3DZL | 559 | 559 | ||||||
| 21/03/2010 | 09:51 | 1296 | JT65C | VK4CDI | R-19 | O | ||||||
| 21/03/2010 | 10:02 | 1296 | JT65C | JH0TOG | O(-27) | RO | 1.8m dish, septum feed, 10W | |||||
| 21/03/2010 | 10:27 | 1296 | JT65C | UN7GK | -18 | -10/-08?? | did not send rpt to me over air | |||||
| 21/03/2010 | 11:22 | 1296 | CW | JA6AHB | 569 | 569 | ||||||
| 21/03/2010 | 16:05 | 1296 | CW | SV3AAF | 569 | 579 | ||||||
| 21/03/2010 | 16:12 | 1296 | CW | F5KUG | 559 | 559 | ||||||
| 21/03/2010 | 17:02 | 1296 | CW | F5SE/P | 569 | 539 | JN19XH | Yes | 310 | |||
| 25/03/2010 | 19:24 | 1296 | JT65C | 8Q7QQ | RO(-23) | O | MJ64JE | Yes | 118 | Y | 59 el yagi, 90W | |
| 26/03/2010 | 19:17 | 1296 | JT65C | IZ5MAO | O | NIL | 2m dish lin pol 100W | |||||
| 26/03/2010 | 20:02 | 1296 | SSTV | PI9CAM | 55 | 54 | Yes | Y | Robot 36 | |||
| 26/03/2010 | 21:07 | 1296 | SSTV | PY2BS | 53 | 52 | Yes | Y | Robot 36 | |||
| 26/03/2010 | 22:22 | 1296 | JT65C | PA0PLY | R-18 | O(-17) | JO22IH | Yes | 119 | 3m dish 100W | ||
| 26/03/2010 | 22:30 | 1296 | SSB | PI9CAM | 58 | 58 | ||||||
| 26/03/2010 | 23:02 | 1296 | CW | PA0BAT | 569 | 569 | New feed - much louder | |||||
| 26/03/2010 | 23:23 | 1296 | SSB | W7JM | 55 | 55 | was W7BBM | |||||
| 26/03/2010 | 23:49 | 1296 | JT65C | W3HMS | RO(-17) | O(-09) | ||||||
| 27/03/2010 | 21:22 | 1296 | SSTV | PY2BS | 53 | 52 | Robot 36 | |||||
| 27/03/2010 | 23:19 | 1296 | CW | PA0BAT | 569 | 569 | ||||||
| 27/03/2010 | 23:43 | 1296 | CW | K2DH | 579 | 579 | ||||||
| 28/03/2010 | 18:32 | 1296 | JT65C | SM0ERR | RO(-19) | O | JO89WJ | Yes | 120 | 1x55 el tonna, 1KW |
SSTV QSO's with PI9CAM & PY2BS
Following on from PI9CAM's first ever SSTV QSO on 23cm EME, I managed to make SSTV QSO's with them and also PY2BS.
It should be noted that PI9CAM has a 25m dish and 60 watts or so at the feed, Bruce PY2BS has a 4.5m dish and 600W at the feed.

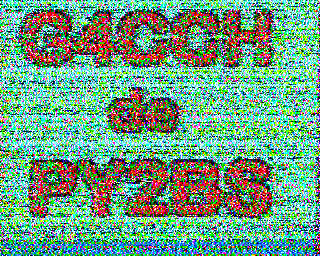

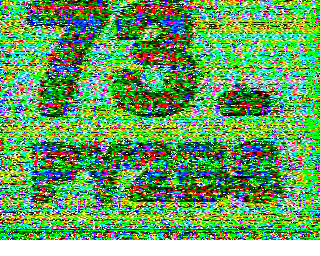

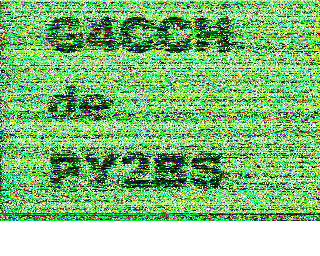

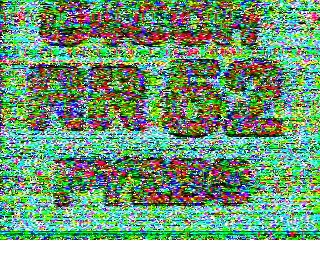

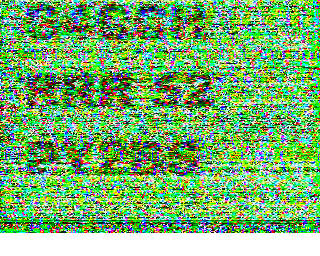

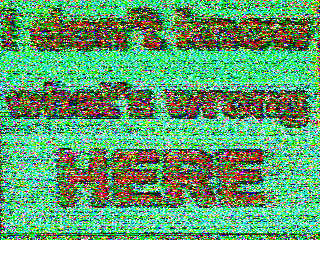

Here's a few pictures, more to follow later:
|
|
 |
 |
|||||
 |
 |
 |
 |
You can find more details of my Initials and standings here
