Assembling the Dish Structure

08 January 2000

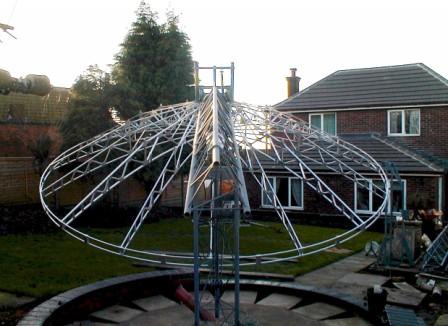

The dish structure was assembled with the mast tilted over for easy access to the hub and tilt mechanism.






The 16 Rib sections were attached to the hub and the outer rim fabricated on to the ends of the Ribs.

The basic structure  is stable and strong enough to be erected until the next stage of the project.
